Power Systems Toolbox

Schematic Editor functionalities available through the Power Systems Toolbox

Real-time only: This document is valid only for real-time/VHIL simulation.

The Power Systems Toolbox is an additional toolbox that supports real-time modeling of key power system components to ensure high fidelity of your system-level models. Its main purpose is to enable you to build your microgrid or electrical subsystem models in a way that mimics the final deployment to maintain high-fidelity in testing. These include real-time functionality for models of Exciters, Governors, Turbines, and Stabilizers which would typically be deployed to maintain high power quality.

Table 1 lists all Schematic Editor components available for real-time simulation through unlocking the Power Systems Toolbox.

Table 1. Power Systems Toolbox Components
Component Name	Image of Component	Schematic Editor Library
IEEE DC4B Exciter		Library Explorer: Signal Processing/Power Systems/

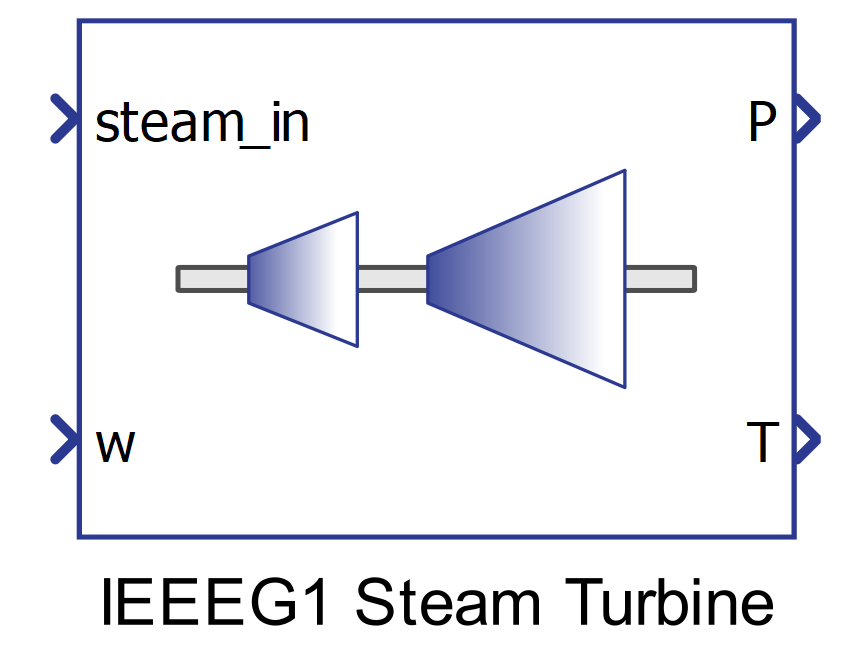

IEEE G1 Steam Turbine		Library Explorer: Signal Processing/Power Systems/
Positive Negative Zero Power		Library Explorer: Signal Processing/Power Measurements/
Symmetrical Components		Library Explorer: Signal Processing/Power Measurements/
IEEE ST1A Exciter		Library Explorer: Signal Processing/Power Systems/
DEGOV Woodward Diesel Governor		Library Explorer: Signal Processing/Power Systems/
IEEE DC1A Exciter		Library Explorer: Signal Processing/Power Systems/
IEEE G1 Governor Valve		Library Explorer: Signal Processing/Power Systems/
IEEE AC8B Exciter		Library Explorer: Signal Processing/Power Systems/
IEEE AC1A Exciter		Library Explorer: Signal Processing/Power Systems/
IEEE Type 1 Exciter	IEEE Type 1 Exciter	Library Explorer: Signal Processing/Power Systems/
