Microgrid Toolbox
Schematic Editor functionalities available through the Microgrid Toolbox
The Microgrid Toolbox is an additional toolbox containing support for real-time modeling of a growing collection of ubiquitous microgrid device models. Its main purpose is to enable you to accelerate the process of building microgrid models for simulation and analysis, allowing you to fully concentrate on the system and/or device under test, be it a microgrid controller, a DER controller, a protection relay, or another device. The Microgrid Toolbox enables early tests of microgrid controllers, communication protocols, device-to-device interactions, and system design with the use of complete models of DERs, loads, protection devices, gensets, and many others. These models can be executed in a great range of tests that cover different operation scenarios of a Microgrid.
Table 1 lists all Schematic Editor components available for real-time modeling through unlocking the Microgrid Toolbox. You can find these components in the Schematic Editor Microgrid Library.
For information about other toolboxes, please refer to the Schematic Editor Toolboxes documentation.
| Component Name | Image of Component | Schematic Editor Library |
|---|---|---|
| Diesel Genset (Generic) |  |
Library Explorer: Microgrid/Distributed Energy Resources/ Diesel Genset |
| Battery ESS (Generic) |  |
Library Explorer: Microgrid/Distributed Energy Resources/ Energy Storage |
| PV Power Plant (Generic) |  |
Library Explorer: Microgrid/Distributed Energy Resources/ PV Power Plant |
| Wind Power Plant (Generic) |  |
Library Explorer: Microgrid/Distributed Energy Resources/ Wind Power Plant |

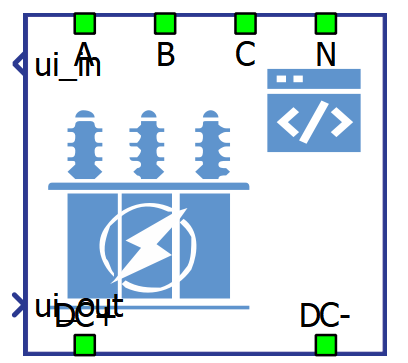

| Bidirectional AC-DC Converter (Generic) |  |
Library Explorer: Microgrid/Distributed Energy Resources/ Converters/ Bidirectional AC-DC Converter |
| Diesel Genset |  |
Library Explorer: Microgrid/Distributed Energy Resources/ Diesel Genset/ Legacy |

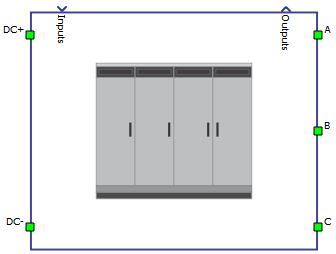

| Battery inverter (Switching and Average) |   |
Library Explorer: Microgrid/Distributed Energy Resources/ Energy Storage/ Legacy |

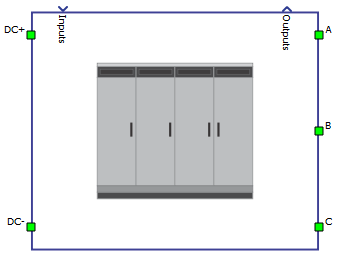

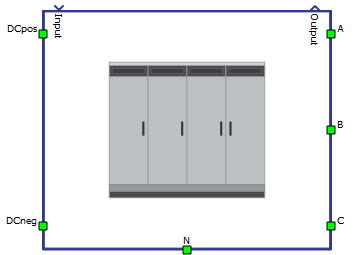

| PV inverter (Switching and Average) |   |
Library Explorer: Microgrid/Distributed Energy Resources/ PV Power Plant/ Legacy |

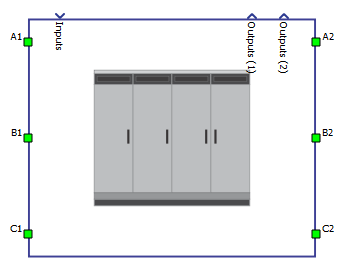

| Back to back converter |  |
Library Explorer: Microgrid/Distributed Energy Resources/ Converters/Back to Back Converter |

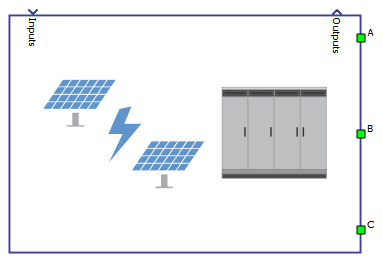

| PV Plant (Switching and Average) |  |
Library Explorer: Microgrid/Distributed Energy Resources/ PV Power Plant/ Legacy |

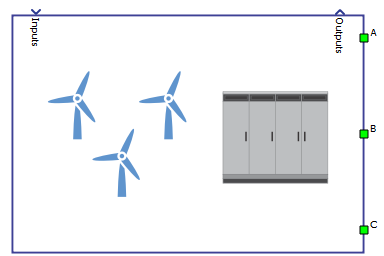

| Wind Power Plant (Switching and Average) |  |
Library Explorer: Microgrid/Distributed Energy Resources/ Wind Power Plant/ Legacy |
| Feeder protection relay (example) |  |
Library Explorer: Microgrid/Protection/ |
| ANSI protective functions | All numbered components and External Trip | Library Explorer:Microgrid/Protection/ |
| SEL-751 Relay Logic |  |
Library Explorer: Microgrid/Protection/SEL-751 |
