Fiber Optic Output card

Description of the Fiber Optic Output card for HIL Connect hardware

The Fiber Optic Output Card offers 16 fiber optic output channels linked to 16 HIL DO channels, designed to support both high and low bandwidth applications. The Fiber Optic Output card accepts industry-standard 1 mm POF, with lengths of up to 50 m.

Fiber Optic Output card revisions

Table 1. Card revisions
Code	Revision	Part number
MA	1.1	24678

Fiber Optic Output card hardware specification

Table 2. Hardware Specification
Parameter	Value
Type	Fiber optic output
Number of channels	16
Input signal range	5 V
Output signal range	optic, DC to 50 MBd
Thresholds	-

Fiber Optic Output card hardware settings

Table 3. Hardware Options
Option	Method	Possible options
Channel routing, in groups of 16	Via internal DIP switch	Channels mapped to HIL DO1..16 or 17..32

Fiber Optic Output card connector data

Table 4. Connector data
Parameter	Value

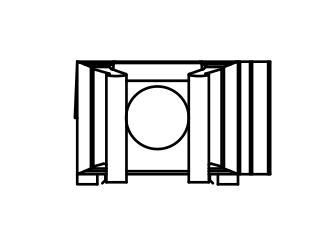

Connector outline
PCB connector part number	AFBR-1629Z
Mating connector part number	HFBR-4533Z

Fiber Optic Output card pinouts

Table 5. X1
Connector	Pin	Related HIL channel, option CH1..16	Related HIL channel, option CH17..32
X1	1	DO1	DO17
X1	2	DO2	DO18
X1	3	DO3	DO19
X1	4	DO4	DO20
X1	5	DO5	DO21
X1	6	DO6	DO22
X1	7	DO7	DO23
X1	8	DO8	DO24
X1	9	DO9	DO25
X1	10	DO10	DO26
X1	11	DO11	DO27
X1	12	DO12	DO28
X1	13	DO13	DO29
X1	14	DO14	DO30
X1	15	DO15	DO31
X1	16	DO16	DO32
