Mechanical

Overview of the physical aspects and interfacing cables of HIL604 devices

Front plate connectors

HIL604 devices feature four DIN41612 male type C connectors. These connectors are marked with a name (e.g. Analog I/O) and a pin number (1 and 32).

Figure 1. HIL I/O connector labeling

Interfacing via PCB-mount connectors

Interfacing via right-angle female DIN41612 connectors is the recommended way, due to robustness.

To do this method, simply make sure to place up to two right angle female DIN41612 connectors, spaced at 2000mil, pad-to-pad on your custom interface PCB design.

Figure 2. HIL I/O connector spacing example

Please contact us if you require a template in Altium format.

Interfacing via 96-pin cables

When direct connection between the HIL and the DUT is not possible, the recommended approach is to use 96 pin cables, purchased from Typhoon HIL, or manufactured from the following parts:

Table 1. HIL Interface Cable BOM (per cable)
Description	Manufacturer	Part number	Quantity
Flat cable	3M	3849-96	per desired length
DIN41612 female crimp	Yamaichi	FNS13-09600-00BF	2
(optional) DIN41612 connector backshell	ERNI	253001	2

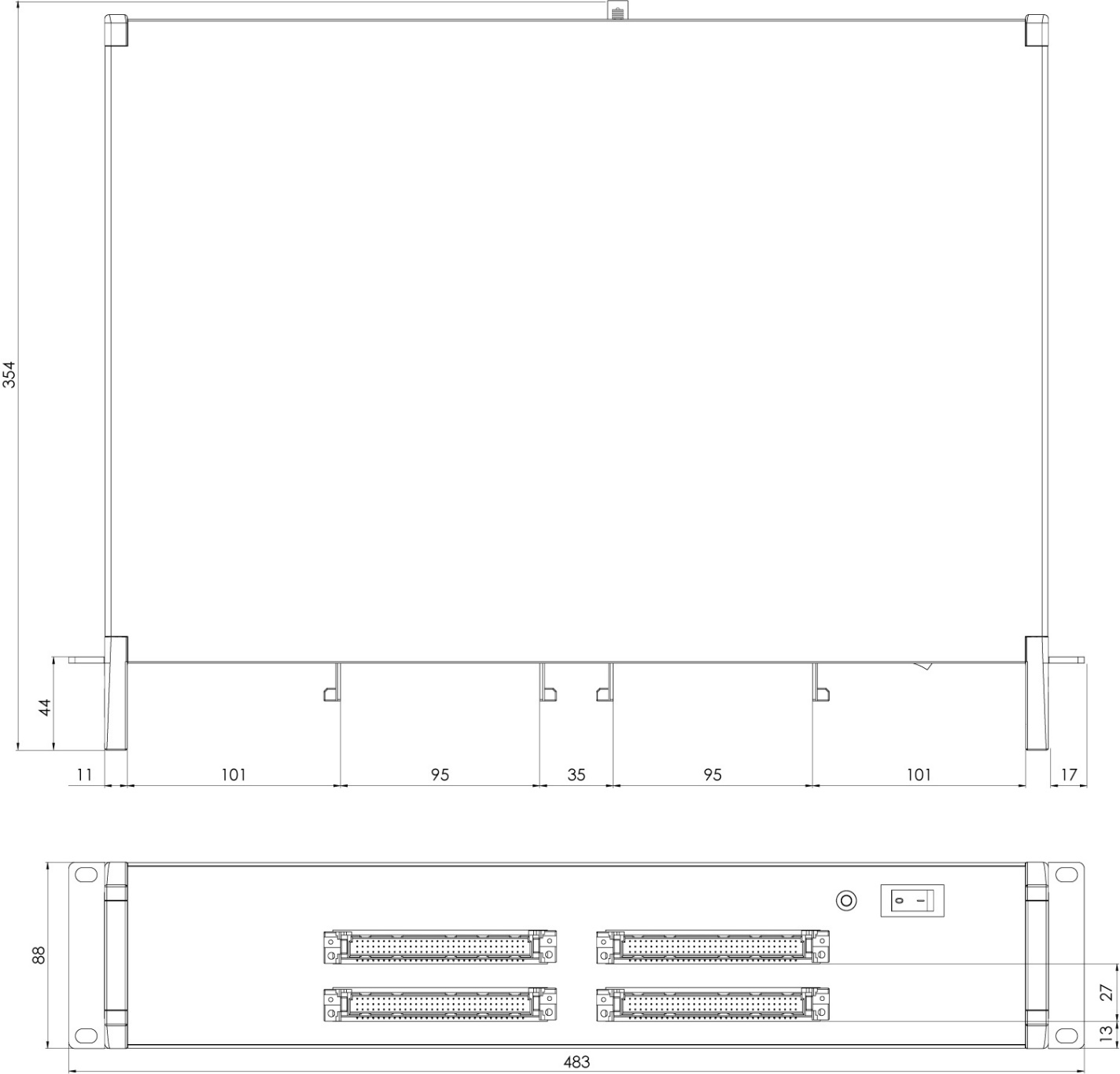

HIL604 dimensions [mm]
