Two Coupled Inductors

Description of the Two Coupled Inductors passive linear component block available in Schematic Editor.

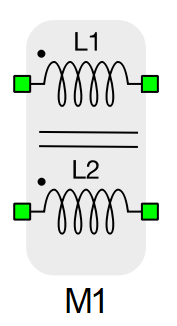

Two coupled inductors are implemented as inductors and voltage controlled voltage sources.

Two coupled inductors are represented by matrix $[\begin{matrix} L & M \\ M & L \end{matrix}]$ where off diagonal elements are calculated as $M_{12} = M_{21} =_{k} * \sqrt{L_{1} * L_{2}}$

Ports

in_1
- Inductor 1 input port
in_2
- Inductor 2 input port
out_1
- Inductor 1 output port
out_2
- Inductor 2 output port

Properties

L1
- L1 inductance value [H]
I1_0
- L1 inductor initial current [A]
R1
- L1 winding resistance [Ω]
L2
- L2 inductance value [H]
I2_0
- L2 inductor initial current [A]
R2
- L2 winding resistance [Ω]
k
- L1 and L2 coupling coefficient
