Digital Input Card parametrization

Description of the set of parameters for the Digital Input Card in the HIL Connect Interface component.

Real-time only: This document is valid only for real-time simulation.

Parameters

Once you select a card, a series of parameters appear that allow you to describe the pins in your setup and how they are connected.

Table 1 lists possible parameters for connector X1. The same parameter options are available for connectors X2, X3, and X4.The first letter of the property "Name" differs depending on the Slot where the card is located. It can be derived by replacing s with: A, B, C, D, E, F, G, H.

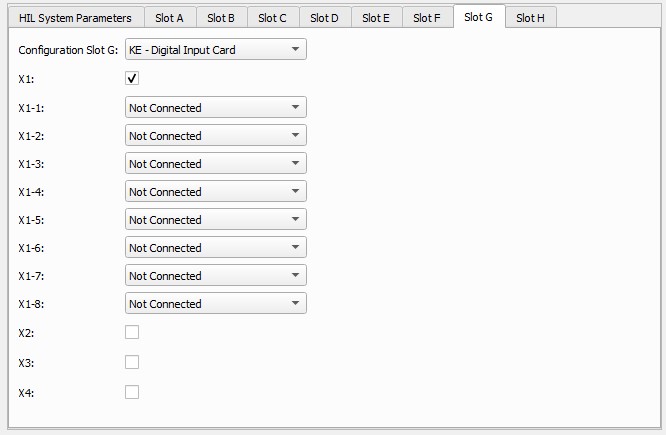

Figure 1. Parameters

Table 1. Description of X1 Connector parameters
Parameter	Name	Description
X1	sX01	Check if the X1 connector is used on Slot s on the HIL Connect
X1-1	sX01_1	Select if pin 1 of the X1 connector on Slot s is connected or not.
X1-2	sX01_2	Select if pin 2 of the X1 connector on Slot s is connected or not.
X1-3	sX01_3	Select if pin 3 of the X1 connector on Slot s is connected or not.
X1-4	sX01_4	Select if pin 4 of the X1 connector on Slot s is connected or not.
X1-5	sX01_5	Select if pin 5 of the X1 connector on Slot s is connected or not.
X1-6	sX01_6	Select if pin 6 of the X1 connector on Slot s is connected or not.
X1-7	sX01_7	Select if pin 7 of the X1 connector on Slot s is connected or not.
X1-8	sX01_8	Select if pin 8 of the X1 connector on Slot s is connected or not.

Ports

Signals from the digital inputs of the HIL Connect can be accessed through the following output ports of the HIL Connect Interface component (again, the first letter depends on the Slot where this card is located):

sX1
sX2
sX3
sX4

As internal digital probes already exist, these ports can be used for sourcing signals inside of the model. The output of this port is a vector with the length of 8 elements, where each element of that vector corresponds to one pin of the connector.
