Feet Removal Procedure

Guide to removing feet from HIL602+ devices

Feet removal procedure

Note: This procedure applies to HIL602+ devices with a serial number up to 0602P-00-00130, and HIL604 devices with a serial number up to 00604-00-00375.

By default, some HIL devices ship with feet attached. If the unit needs to be mounted in a 19” cabinet, these feet might occupy additional space. This chapter describes how to remove these feet.

Remove the side panels by undoing eight Torx-10 bolts on the side plate, four on each side:

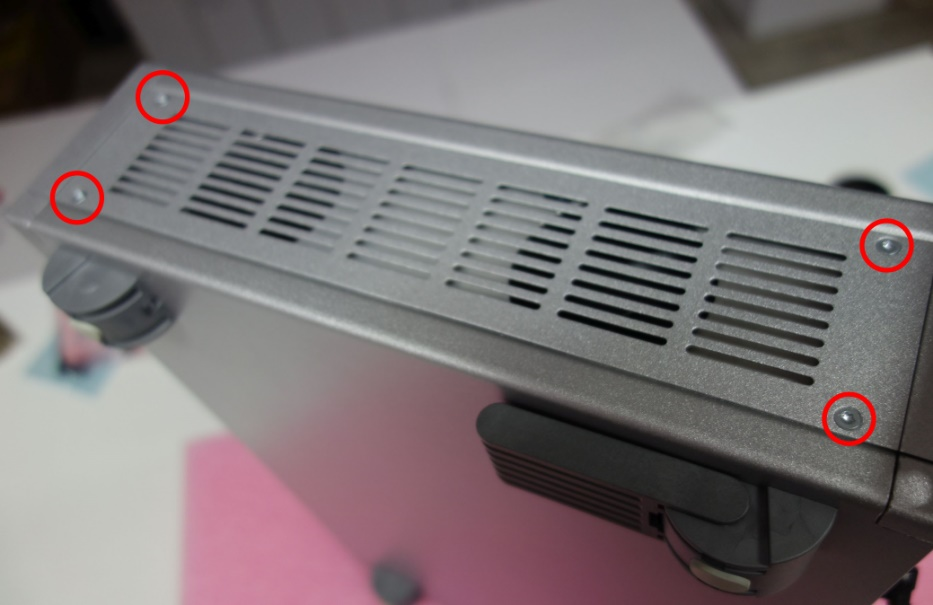

Figure 1. Side cover bolts
Remove the bottom cover, start by pulling on the circled area:

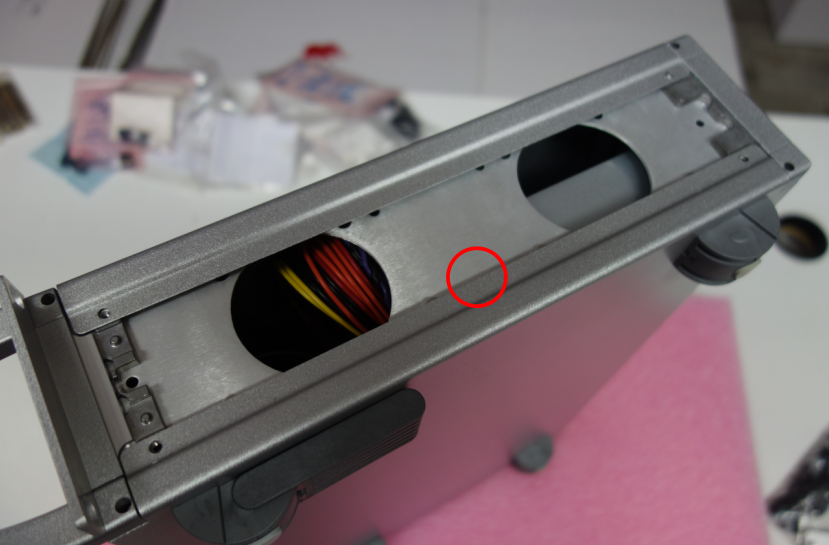

Figure 2. Bottom cover removal
Remove the feet by undoing eight Torx-10 screws on the bottom plate:

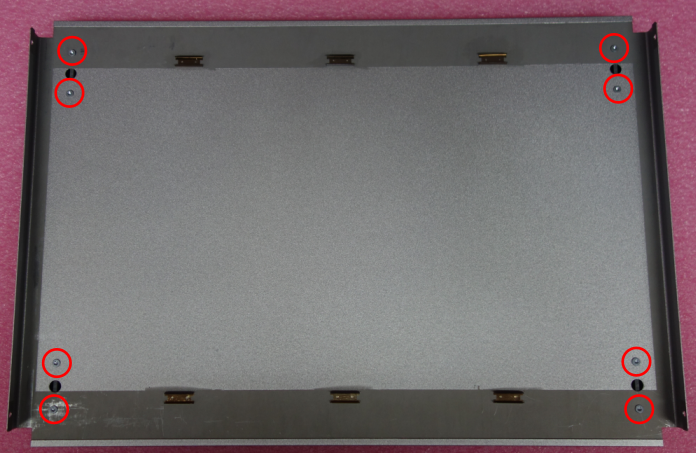

Figure 3. Feet-holding bolts
Restore the bottom plate. Six latches should mate with the enclosure frame. If there is a gap between front/rear plate and the bottom cover, apply pressure to that area:

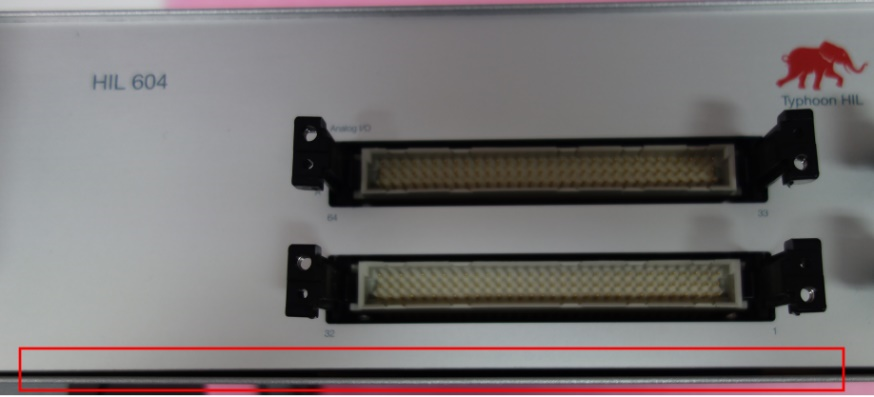

Figure 4. Gap which should be eliminated
Restore the side plates.
