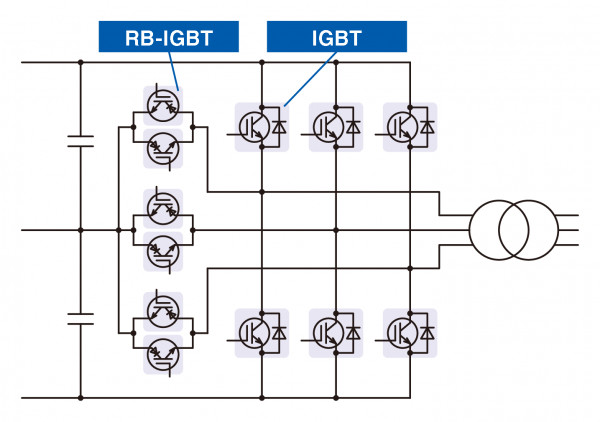

Is it possible to simulate a Three Phase A-NPC (Active - Neutral Point Clamped) RB-IGBT (Reverse Blocking) converter in Typhoon HIL? Converter topology is presented below:

closed with the note: This question is part of the official Typhoon HIL Knowledge Base and is locked to new answers. You can still provide feedback by posting comments to the answer.

1 Answer

+2 votes
by Dimitrije Jelić (400 points)

Best answer

Greetings,

Although there is no corresponding converter with exact topology as in the figure you attached available in Typhoon HIL, you can use a Three Phase T-Type converter instead. If controlled in the proposed manner, this converter should operate in the same way.

To operate the Three Phase T-Type converter in the same manner as NPC with RB-IGBT, gate drive signals would have to be assigned to the following switches:

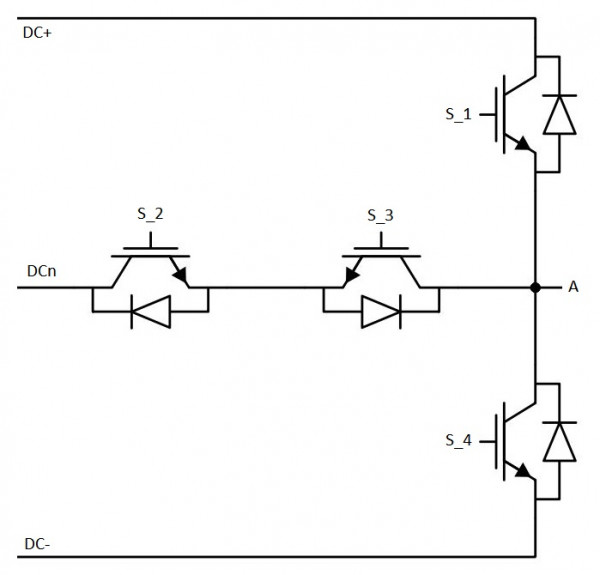

NPC T-Type converterNPC with RB-IGBT
  • GDS for NPC RB-IGBT T1 should be assigned to NPC T-Type S_1
  • GDS for NPC RB-IGBT T2 should be assigned to NPC T-Type S_4
  • GDS for NPC RB-IGBT T3 should be assigned to NPC T-Type S_3
  • GDS for NPC RB-IGBT T4 should be assigned to NPC T-Type S_2
Hope this helps!
...
