Three Phase Squirrel Cage Induction Machine

A, B, and C are stator winding terminals. The stator winding uses the current source interface.

Electrical sub-system model

The electrical part of the machine is represented by the following system of equations, modeled in the stationary αβ reference frame. All rotor variables and parameters are referred to the stator.

$[\begin{matrix} v_{α s} \\ v_{β s} \\ \begin{matrix} v_{α r}^{} \\ v_{β r}^{} \end{matrix} \end{matrix}] = [\begin{matrix} R_{s} & 0 & 0 & 0 \\ 0 & R_{s} & 0 & 0 \\ 0 & 0 & R_{r}^{} & 0 \\ 0 & 0 & 0 & R_{r}^{} \end{matrix}] [\begin{matrix} i_{α s} \\ i_{β s} \\ \begin{matrix} i_{α r}^{} \\ i_{β r}^{} \end{matrix} \end{matrix}] + \frac{d}{d t} [\begin{matrix} ψ_{α s} \\ ψ_{β s} \\ \begin{matrix} ψ_{α r}^{} \\ ψ_{β r}^{} \end{matrix} \end{matrix}] + [\begin{matrix} 0 \\ 0 \\ \begin{matrix} _{} ω_{r} ψ_{β r}_{} \\ _{} {- ω}_{r} ψ_{α r}_{} \end{matrix} \end{matrix}]$

[\begin{matrix} ψ_{α s} \\ ψ_{β s} \\ \begin{matrix} ψ_{α r}^{} \\ ψ_{β r}^{} \end{matrix} \end{matrix}] = [\begin{matrix} L_{s} & 0 & L_{m} & 0 \\ 0 & L_{s} & 0 & L_{m} \\ L_{m} & 0 & L_{r} & 0 \\ 0 & L_{m} & 0 & L_{r} \end{matrix}] [\begin{matrix} i_{α s} \\ i_{β s} \\ \begin{matrix} i_{α r}^{} \\ i_{β r}^{} \end{matrix} \end{matrix}]

T_{e} = \frac{3}{2} p (ψ_{α s} i_{β s} - ψ_{β s} i_{α s})

If the saturation effects are considered, the equations have the same form, but in that case the magnetizing flux is a function of the magnetizing current:

ψ_{m} = f (i_{m})

where:

$ψ_{m} = \sqrt{{(ψ_{α s} + ψ_{α r})}^{2} + {(ψ_{β s} + ψ_{β r})}^{2}}$

$i_{m} = \sqrt{{(i_{α s} + i_{α r})}^{2} + {(i_{β s} + i_{β r})}^{2}}$

Table 1. Three Phase Squirrel Cage Induction Machine electrical subsystem model variables
symbol	description
ψ_αs	Alpha axis component of the stator flux [Wb]
ψ_βs	Beta axis component of the stator flux [Wb]
ψ_αr	Alpha axis component of the rotor flux, referred to the stator [Wb]
ψ_βr	Beta axis component of the rotor flux, referred to the stator [Wb]
i_αs	Alpha axis component of the stator current [A]
i_βs	Beta axis component of the stator current [A]
i_αr	Alpha axis component of the rotor current, referred to the stator [A]
i_βr	Beta axis component of the rotor current, referred to the stator [A]
v_αs	Alpha axis component of the stator voltage [V]
v_βs	Beta axis component of the stator voltage [V]
v_αr	Alpha axis component of the rotor voltage, referred to the stator [V]
v_βr	Beta axis component of the rotor voltage, referred to the stator [V]
R_s	Stator phase resistance [Ω]
R_r	Rotor phase resistance, referred to the stator [Ω]
L_m	Magnetizing (mutual, main) inductance [H]
L_s	Stator phase inductance [H] ( $= L_{l s} + L_{m}$ )
L_r	Rotor phase inductance, referred to the stator [H] ( $= L_{l r} + L_{m}$ )
ω_r	Rotor electrical speed [rad/s] ( $= p ω_{m}$ )
p	Machine number of pole pairs
T_e	Machine developed electromagnetic torque [Nm]
ψ_m	Magnetizing flux [Wb]
i_m	Magnetizing current [A]

Mechanical sub-system model

Motion equation:

\frac{{d ω}_{m}}{d t} = \frac{1}{J_{m}} (T_{e} - T_{l} - b ω_{m})

θ_{m} = \int ω_{m} d t

Table 2. Mechanical sub-system model variables
Symbol	Description
ω_m	Rotor mechanical speed [rad/s]
J_m	Combined rotor and load moment of inertia [kgm2]
T_e	Machine developed electromagnetic torque [Nm]
T_l	Shaft mechanical load torque [Nm]
b	Machine viscous friction coefficient [Nms]
θ_m	Rotor mechanical angle [rad]

Note: Motion equation is the same for all of the rotating machine models.

Saturation effects

The three phase squirrel cage induction machine component can include magnetic saturation effects. In that case, magnetizing flux or magnetizing inductance is defined as a function of the magnetizing current. That function is represented in the form of lookup table. The lookup tables use linear interpolation and linear extrapolation.

Saturation can be parametrized in the following ways:

magnetizing flux vs magnetizing current
magnetizing inductance vs magnetizing current

Figure 2. Nonlinear Model Type: magnetizing flux as function of magnetizing current, ψ_m=f(i_m)

im_vector = [0.0, 0.661428, 0.957988, 1.224002, 1.527775, 1.836498, 2.485056, 3.197537, 4.162313, 5.57879, 8.211348, 12.342407, 22.172606]
psim_vector = [0.0, 0.125279, 0.192308, 0.25488, 0.318532, 0.382499, 0.511695, 0.635623, 0.76725, 0.885866, 1.007544, 1.097936, 1.186302]

Figure 3. Nonlinear Model Type: magnetizing inductance as function of magnetizing current, L_m=f(i_m)

im_vector = [0.0, 0.661428, 0.957988, 1.224002, 1.527775, 1.836498, 2.485056, 3.197537, 4.162313, 5.57879, 8.211348, 12.342407, 22.172606]
Lm_vector = [0.0, 0.189407, 0.200741, 0.208235, 0.208494, 0.208277, 0.205909, 0.198785, 0.184332, 0.158792, 0.122701, 0.088956, 0.053503]

Ports

A (electrical)
- Stator winding phase A port.

B (electrical)
- Stator winding phase B port.

C (electrical)
- Stator winding phase C port.

in
- Available in real-time/VHIL simulation if Model Load source is selected or Dynamic resistances is enabled
- Input vector description and order in real-time/VHIL simulation:
  - in[0] = model_load - if Model Load source is selected and Dynamic resistances is enabled/disabled
  - in[1] = Stator phase resistance [Ω] - if SCADA / external Load source is selected and Dynamic resistances is enabled
  - in[2] = Rotor phase resistance, referred to the stator [Ω] - if Model Load source is selected and Dynamic resistances is enabled
  - in[1] = Fault severity - if Model Load source is selected and Fault simulation is enabled
  - in[2] = Rf [Ω] - if Model Load source is selected and Fault simulation is enabled
- Available in TyphoonSim simulation if Model Load source is selected
- Input vector description and order in TyphoonSim simulation:
  - in[0] = model_load - if Model Load source is selected
  - Dynamic resistances and Fault simulation are ignored in TyphoonSim simulation.

Electrical (Tab)

Model Type
- Specifies machine model implementation.
- Two levels of model fidelity are available - linear and nonlinear.

Magnetizing curve type
- Available if Model Type is set to nonlinear.
- Following saturation types can be specified - flux vs current and absolute inductance vs current.

Rs
- Stator phase resistance [Ω]

Rr
- Rotor phase resistance, referred to the stator [Ω]

Lls
- Stator leakage inductance [H]

Llr
- Rotor leakage inductance, referred to the stator [H]

Lm
- Available if Model Type is set to linear
- Magnetizing (mutual) inductance of the motor, referred to the stator [H]
Dynamic resistances
- Dynamic resistance is ignored in TyphoonSim.
- Enables real-time change to stator and rotor resistances. If calculations of these resistances depend on the temperature, they can be routed to a load input with signal processing connections, provided that this property is enabled. The vectorized array [Rs, Rr] is in ohms.
- When enabled, a machine input terminal is either created or extended by a new input for defining this resistance value in Ohms. More information can be found in the dedicated ports section.
- Note: This property is only available if Fault Simulation is disabled.
- A brief demonstration of how to enable Dynamic resistances is shown below (requires internet connection):
im vector
- Available if Model Type is set to nonlinear
- List of instantaneous values of the magnetizing current [A]

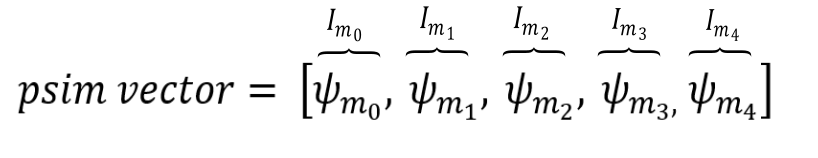

psim vector
- Available if Model Type is set to nonlinear - flux vs current.
- List of instantaneous values of the magnetizing flux [Wb]

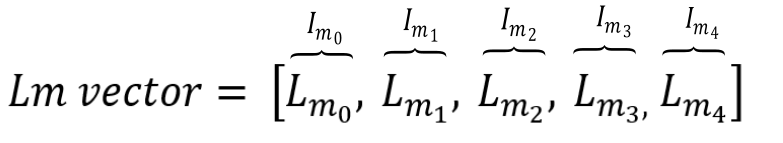

Lm vector
- Available if Model Type is set to nonlinear - absolute inductance vs current.
- List of instantaneous values of the magnetizing inductance [Wb]

Mechanical (Tab)

pms
- Machine number of pole pairs
Jm
- Combined rotor and load moment of inertia [kgm2]
Friction coefficient
- Machine viscous friction coefficient [Nms]
Unconstrained mechanical angle
- Limiting mechanical angle between 0 and 2π

Load (Tab)

Load source
- Load source can be set from SCADA/external or from model (in model case, one signal processing input will appear).
- In TyphoonSim, if SCADA/external is chosen as Load source, analog signals are read from the internal virtual IO bus. Hence, if some signal is sent to analog ouput 1, it will appear on analog input 1.
External/Model load type
- Load type: torque or speed
Load ai pin
- Load ai pin for external torque/speed command.
- In real-time/VHIL simulation, Load ai pin represent HIL analog input address for external torque command.
- In TyphoonSim, analog signals are read from the internal virtual IO bus. Hence, if some signal is sent to analog ouput 1, it will appear on analog input 1.
- Available only if SCADA/external is set as Load source.
Load ai offset
- Assigned offset value to the input signal representing external torque command.
- Available only if SCADA/external is set as Load source.
Load ai gain
- Assigned gain value to the input signal representing external torque command.
- Available only if SCADA/external is set as Load source.

External load enables you to use an analog input signal from a HIL/TyphoonSim (internal virtual IO bus in TyphoonSim) analog channel with the load_ai_pin address as an external torque/speed load, and to assign offset (V) and gain (Nm/V) to the input signal, according to the formula:

$T_{l} = l o a d_a i_g a i n \cdot (A I (l o a d_a i_p i n) + l o a d_a i_o f f s e t)$

Note: An analog input pin may be overwritten if another component uses the same analog input pin. If another property (from the same or a different component) uses the same analog input pin, the input signal value will be applied to only one of those properties. For instance, if both the load and the resolver carrier signal use the same analog input pin, the signal value will only be applied only to one of these.

Feedback (Tab)

Encoder ppr
- Incremental encoder number of pulses per revolution
Encoder Z pulse length
- Z digital signal pulse length in periods. Can be Quarter length or Full period (default)
Resolver pole pairs
- Resolver number of pole pairs
Resolver carrier source
- Resolver carrier signal source selection (internal or external)
Resolver carrier frequency
- Resolver carrier signal frequency (internal carrier) [Hz]
- Available only if the Resolver carrier source property is set to internal
External resolver carrier source type
- External resolver carrier signal source type selection (single ended or differential)
- Available only if the Resolver carrier source property is set to external
Resolver ai pin 1
- Resolver carrier input channel 1 address (external carrier)
- Available only if the Resolver carrier source property is set to external
- In TyphoonSim, analog signals are read from the internal virtual IO bus. Hence, if some signal is sent to analog ouput 1, it will appear on analog input 1.
Resolver ai pin 2
- Resolver carrier input channel 2 address (external carrier)
- Available only if the Resolver carrier source property is set to externaland External resolver carrier source type property is set to differential
- In TyphoonSim, analog signals are read from the internal virtual IO bus. Hence, if some signal is sent to analog ouput 1, it will appear on analog input 1.
Resolver ai offset
- Resolver carrier input channel offset (external carrier)
- Available only if the Resolver carrier source property is set to external
- In TyphoonSim, analog signals are read from the internal virtual IO bus. Hence, if some signal is sent to analog ouput 1, it will appear on analog input 1.
Resolver ai gain
- Resolver carrier input channel gain (external carrier)
- Available only if the Resolver carrier source property is set to external
- In TyphoonSim, analog signals are read from the internal virtual IO bus. Hence, if some signal is sent to analog ouput 1, it will appear on analog input 1.
Absolute encoder protocol
- Standardized protocol providing the absolute machine encoder position.
- Absolute encoder protocol is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.
Singleturn bits
- Number of machine absolute encoder singleturn bits.
- Available only if Absolute encoder protocol is not None.
- Absolute encoder protocol is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.
Enable multiturn
- Enables multiturn absolute encoder support.
- Available only if Absolute encoder protocol is not None.
- Absolute encoder protocol is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.
Multiturn bits
- Number of machine absolute encoder multiturn bits.
- Available only if Enable multiturn is checked.
- Absolute encoder protocol is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.
EnDat/SSI/BiSS clock DI pin
- Clock digital input pin for the chosen absolute encoder protocol type.
- Available only if Absolute encoder protocol is not None.
- Absolute encoder protocol is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.
Clock DI logic
- Clock DI pin logic: active high/active low.
- Available only if Absolute encoder protocol is not None.
- Absolute encoder protocol is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.
EnDat data DI pin
- EnDat data digital input pin.
- Available only if Absolute encoder protocol is EnDat.
- Absolute encoder protocol is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.
Data DI logic
- EnDat data DI pin logic: active high/active low.
- Available only if Absolute encoder protocol is EnDat.
- Absolute encoder protocol is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.

If an external resolver carrier source is selected, the source signal type can be set as either single ended or differential. The single ended external resolver carrier source type enables use of an analog input signal from the HIL/TyphoonSim (internal virtual IO bus in TyphoonSim) analog channel with the res_ai_pin_1 address as the external carrier source. Additionally, offset (V) and gain (V/V) values can be assigned to the input signal, according to the formula:

r e s_c a r r_s r c = r e s_a i_g a i n \cdot (A I (r e s_a i_p i n_1) + r e s_a i_o f f s e t)

The differential external resolver carrier source type enables use of two analog input signals from the HIL/TyphoonSim (internal virtual IO bus in TyphoonSim) analog channels with the res_ai_pin_1 and the res_ai_pin_2 addresses. Analog signals from these HIL/TyphoonSim (internal virtual IO bus in TyphoonSim) analog inputs are subtracted, and the resulting signal is used as the external differential carrier source. Additionally, offset (V) and gain (V/V) values can be assigned to the input signal (similarly to the single ended case), according to the formula:

r e s_c a r r_s r c = r e s_a i_g a i n \cdot ((A I (r e s_a i_p i n_1) - A I (r e s_a i_p i n_2)) + r e s_a i_o f f s e t)

Note: In real-time/VHIL simulation, differential external resolver signal support is available from the 2023.1 software version. Only the single ended external resolver option was available in previous software versions.

Note: In order to get a resolver signal with an amplitude of 1 when using an external carrier signal, the offset and the gain should be chosen in such a way that the resolver carrier signal has an amplitude of 1 after the adjustment. As shown in Figure 4, the sinusoidal signal used to generate external resolver carrier source is fed to HIL/TyphoonSim (internal virtual IO bus in TyphoonSim) analog input 1. The analog input signal is scaled in order to get the resolver signals with an amplitude of 1.

Note: An analog input pin may be overwritten if another component uses the same analog input pin. If another property (from the same or a different component) uses the same analog input pin, the input signal value will be applied to only one of those properties. E.g. if both the load and the resolver carrier signal use the same analog input pin, the signal value will be applied only to one of these.

The following expression must hold in order to properly generate the encoder signals:

4 \cdot e n c_p p r \cdot f_{m} {\cdot T}_{s} \leq 1

Table 3. Variables in the encoder limitation expression
symbol	description
enc_ppr	Encoder number of pulses per revolution
f_m	Rotor mechanical frequency [Hz]
T_s	Simulation time step [s]

Figure 5. Machine encoder signals when *Full period* option is selected

Figure 6. Machine encoder signals when *Quarter period* option is selected

Note: While the machine speed is positive, the encoder channel B signal leads the encoder channel A signal.

Note: Absolute encoder protocol is not supported on HIL402 (configurations: 1, 2, 3, and 4).

Note: More information about absolute encoder protocol could be found here.

Snubber (Tab)

Rsnb stator
- Stator snubber resistance value [Ω]

All machines with current source based circuit interfaces have the Snubber tab in the properties window where the value of snubber resistance can be set. Snubbers are necessary in the cases when an inverter or a contactor is directly connected to the machine terminals. This value can be set to infinite (inf), but it is not recommended when a machine is directly connected to the inverter since there will be a current source directly connected to an open switch. In this case, one of each switch pairs S1 and S2, S3 and S4, and S5 and S6 will be forced closed by the circuit solver in order to avoid the topological conflicts. On the other hand, with finite snubber values, there's always a path for the currents Ia and Ib, so all inverter switches can be open in this case. Circuit representations of this circuit without and with snubber resistors are shown in Figure 7 and Figure 8 respectively. Snubbers are connected across the current sources.

Figure 7. Circuit representation of machine and inverter when all the switches are open without resistors (not recommended)

Figure 8. Circuit representation of machine and inverter when all the switches are open with resistors (recommended)

Note: Snubbers exist only in the machine components that have the current source based circuit interface.

Note: Snubbers are dynamic, which means that the snubber is dynamically added to circuit modes where topological conflicts are detected.

Output (Tab)

This block tab enables a single, vectorized signal output from the machine. The output vector contains selected machine mechanical and/or electrical variables in the same order as listed in this tab.

Note: All machine components have the Execution rate, Electrical torque, Mechanical speed, and Mechanical angle, but the rest of the signals differ from component to component.

Execution rate
- Signal processing output execution rate [s]
Electrical torque
- Machine electrical torque [Nm]
Mechanical speed
- Machine mechanical angular speed [rad/s]
Mechanical angle
- Machine mechanical angle [rad]
Stator alpha axis current
- Alpha axis component of the stator current [A]
Stator beta axis current
- Beta axis component of the stator current [A]
Rotor alpha axis current
- Alpha axis component of the rotor current, referred to the stator [A]
Rotor beta axis current
- Beta axis component of the rotor current, referred to the stator [A]
Stator alpha axis flux
- Alpha axis component of the stator flux [Wb]
Stator beta axis flux
- Beta axis component of the stator flux [Wb]
Rotor alpha axis flux
- Alpha axis component of the rotor flux, referred to the stator [Wb]
Rotor beta axis flux
- Beta axis component of the rotor flux, referred to the stator [Wb]

Fault (Tab)

In this block tab, you can choose the fault simulation and specify the type of fault. The chosen fault can be in one of the phases. When choosing the fault, a machine input terminal is either created or extended by a new vectorized input for defining fault parameters. For the ITSC (Interturn Short Circuit) fault type, the vectorized array is [severity factor, Rf]. The machine component fault tab layout is shown here:

Fault Simulation
- Enabling input for fault parameters
- Fault simulation property is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.

Fault type
- Type of the fault to be simulated
- Only Interturn Short Circuit is available at the time
- Fault type property is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.

Fault location
- Phase in which the fault is simulated
- Fault location property is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.

Execution rate
- Signal processing execution rate at which the model matrices are calculated [s]
- Execution rate property is ignored in TyphoonSim. Changing its value will not affect TyphoonSim simulation at all.

A brief tutorial video on how to test for an ITSC fault is shown below (requires internet connection):

Electrical sub-system model for a machine with an ITSC fault in phase A

[\begin{matrix} v_{α s} \\ v_{β s} \\ v_{α r} \\ v_{β r} \\ v_{a s 2} \end{matrix}] = [\begin{matrix} R s & 0 & 0 & 0 & - \frac{2}{3} µ R s \\ 0 & R s & 0 & 0 & 0 \\ 0 & 0 & R r & 0 & 0 \\ 0 & 0 & 0 & R r & 0 \\ µ R s & 0 & 0 & 0 & - (µ R s + R f) \end{matrix}] [\begin{matrix} i_{α s} \\ i_{β s} \\ i_{α r} \\ i_{β r} \\ i_{f} \end{matrix}] + \frac{d}{d t} [\begin{matrix} ψ_{α s} \\ ψ_{β s} \\ ψ_{α r} \\ ψ_{β r} \\ ψ_{a s 2} \end{matrix}] + [\begin{matrix} 0 \\ 0 \\ ω_{r} ψ_{β r} \\ - ω_{r} ψ_{α r} \\ 0 \end{matrix}]

[\begin{matrix} ψ_{α s} \\ ψ_{β s} \\ ψ_{α r} \\ ψ_{β r} \\ ψ_{α s 2} \end{matrix}] = [\begin{matrix} L_{s} & 0 & L_{m} & 0 & - \frac{2}{3} µ (µ \frac{L_{l s}}{1 - 2 µ + 2 µ^{2}} + L_{m)} \\ 0 & L_{s} & 0 & L_{m} & 0 \\ L_{m} & 0 & L_{r} & 0 & - \frac{2}{3} µ L_{m} \\ 0 & L_{m} & 0 & L_{r} & 0 \\ µ (µ \frac{L_{l s}}{1 - 2 µ + 2 µ^{2}} + L_{m)} & 0 & µ L_{m} & 0 & - \frac{µ^{2} L_{l s}}{1 - 2 µ + 2 µ^{2}} - \frac{2}{3} µ^{2} L_{m} \end{matrix}] [\begin{matrix} i_{α s} \\ i_{β s} \\ i_{α r} \\ i_{β r} \\ i_{f} \end{matrix}]

Table 4. Three Phase Squirrel Cage Induction Machine fault model variables and parameters
symbol	description
v_αs	Alpha axis component of the stator voltage [V]
v_βs	Beta axis component of the stator voltage [V]
v_αs2	Voltage of the short circuited turns in the phase a [V]
i_αs	Alpha axis component of the stator current [A]
i_βs	Beta axis component of the stator current [A]
i_αr	Alpha axis component of the rotor current, referred to the stator [A]
i_βr	Beta axis component of the rotor current, referred to the stator [A]
i_f	Fault current [A]
ψ_αs	Alpha axis component of the stator flux [Wb]
ψ_βs	Beta axis component of the stator flux [Wb]
ψ_αr	Alpha axis component of the rotor flux, referred to the stator [Wb]
ψ_βr	Beta axis component of the rotor flux, referred to the stator [Wb]
ψ_αs2	Flux of the short circuited turns in the phase a [Wb]
R_s	Stator phase resistance [Ω]
R_r	Rotor phase resistance, referred to the stator [Ω]
R_f	Fault resistance (minimum value 0, maximum value 100 Ω)
µ	Fault severity factor - short-circuited number of turns (minimum value 1e-4, maximum value 1)
L_ls	Stator leakage inductance [H]
L_m	Magnetizing (mutual, main) inductance [H]
L_s	Stator phase inductance [H] ( $= L_{l s} + L_{m}$ )
L_r	Rotor phase inductance, referred to the stator [H] ( $= L_{l r} + L_{m}$ )
ω_r	Rotor electrical speed [rad/s] ( $= p ω_{m}$ )

Extras (Tab)

The Extras tab gives you the opportunity to set Signal Access Management for the component.

Signal visibility is calculated based on the 'signal_access' property and whether or not a parent component in its hierarchy is locked or not. Components that are not contained within locked components expose their signals regardless of the 'signal_access' property. The 'signal_access' property can have one of three values:

Public - Components marked as public expose their signals on all levels.
Protected - Components marked as protected will hide their signals to components outside of their first locked parent component.
Inherit - Components marked as inherit will take the nearest parent 'signal_access' property value that is set to a value other than inherit.
