Supported cards

A list of supported TI Launchpad cards

Note: Due to a possible collision with the BOOT MODE pin, some TI Launchpad cards can be used as they are, while some must be modified.

Cards supported without modification

The HIL TI Launchpad Interface is designed to support the following TI Launchpad cards, without any modification to the Interface or Launchpad:

Cards supported with modification

Due to a collision of the HIL Digital Output stage with the BOOT MODE pin, one digital buffer IC on the HIL Launchpad Interface needs to be electrically disabled, by modifying the ROE1 and/or ROE2 solder jumper position, from right (default) to left.

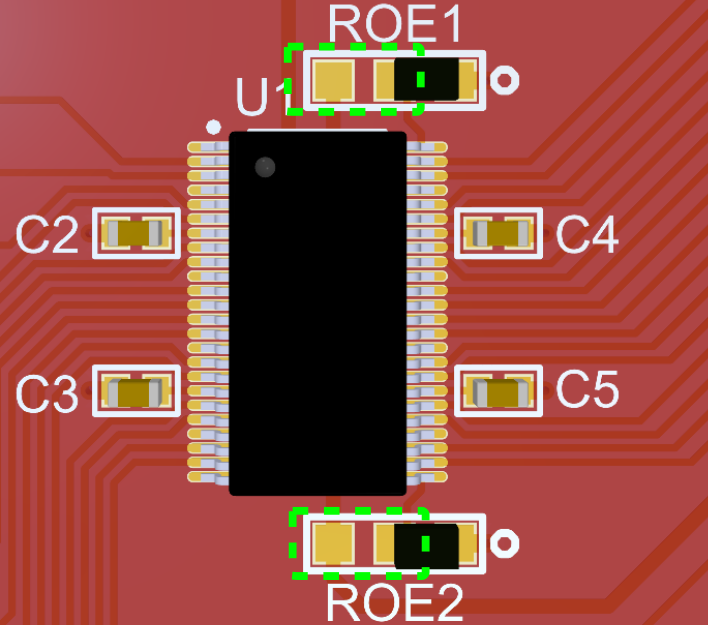

Figure 1. ROE1 and ROE2 positions, left (green rectangle), and right (default)

Table 1. Cards supported after ROE jumper modification
Card	ROE1 position	ROE2 position
LAUNCHXL-F280025C	Default	Left (HIL DO9-16 disabled)
LAUNCHXL-F280039C	Left (HIL DO1-8 disabled)	Default
LAUNCHXL-F280049C	Default	Left (HIL DO9-16 disabled)
LAUNCHXL-F2800137	Left (HIL DO1-8 disabled)	Default
LAUNCHXL-F2800157	Left (HIL DO1-8 disabled)	Default
LAUNCHXL-F28P55X	Left (HIL DO1-8 disabled)	Default
LAUNCHXL-F28P65X	Left (HIL DO1-8 disabled)	Default

“Texas Instruments“, “TI“, and "LaunchPad™" are registered trademarks of Texas Instruments Incorporated in the United States of America, or other countries, or both.
