Pinouts

Pinout of the connectors found on HIL Breakout Board.

DIN41612 connectors

The DIN41612 connector pinout is given in Figure 1 and Figure 2.

Note that the pinouts are valid only if the Breakout Board is connected to a supported HIL device, and that 3.3 V, 5 V, and 12 V signal labels are provided as indication only, without any PSU capabilities.

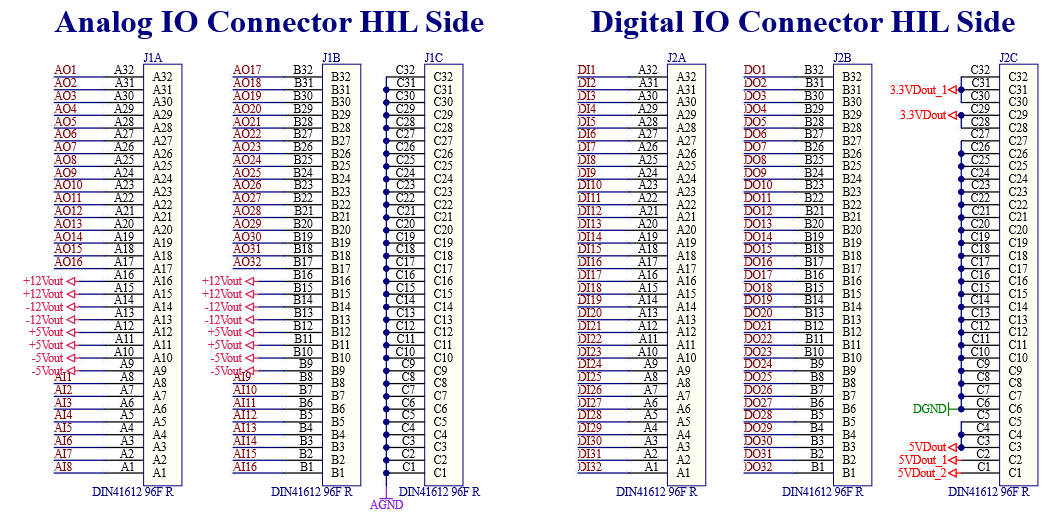

Figure 1. DIN41612 section pinout - HIL side

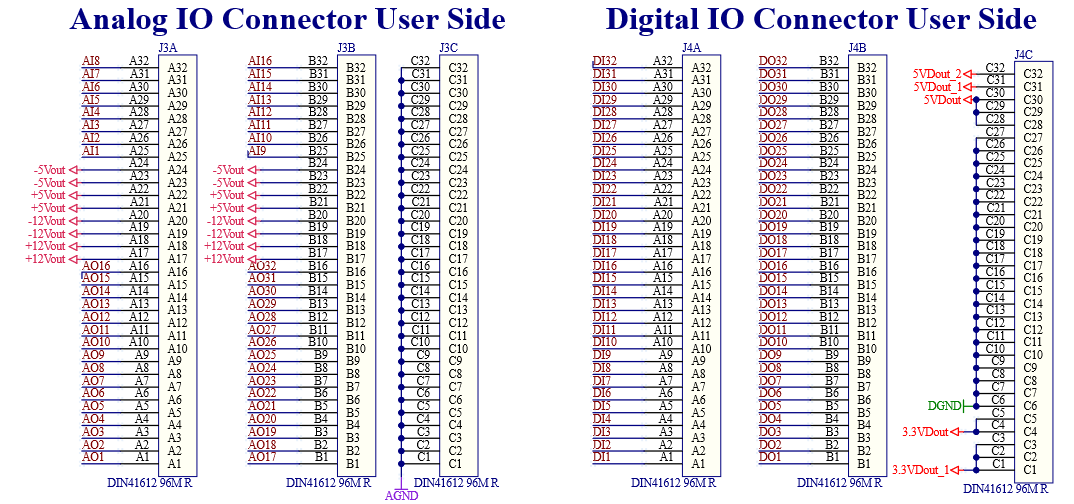

Figure 2. DIN41612 section pinout - User side

Spring-cage connector array pinout

Pinouts for the spring-cage connector array given in Figure 3.
