Instability due to coupling challenges.

0 votes
13 views
ago in Modeling by Simon Njuguna (12 points)

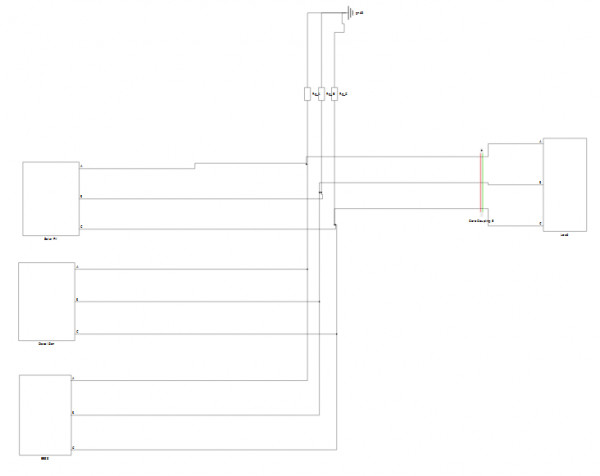

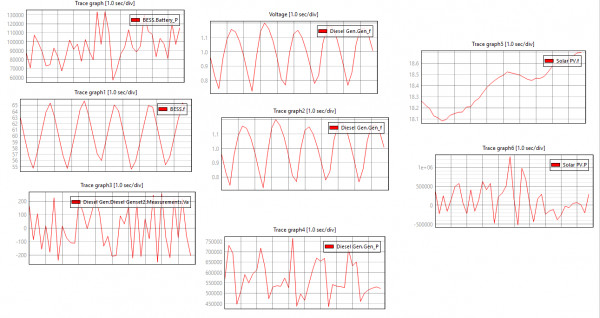

My microgrid model is not is not working properly because I am having challenges configuring the couplings between elements. The frequency measurement of my PV system is dropping fast and the grid forming diesel generator is severely distorted. Could someone advice me the best way to set the couplings.
