Signed Integer to 32-bit Boolean Conversion in Typhoon HIL

Question

Hi,
I'm trying to convert both positive and negative integers to 32-bit binary using booleans in Typhoon HIL.

The Boolean Split works fine for unsigned integers, but when I input negative values, all outputs turn to zero.

Could you please suggest a way to convert signed integers (including negatives) into 32-bit boolean representation correctly?

Answer 1

Hello,

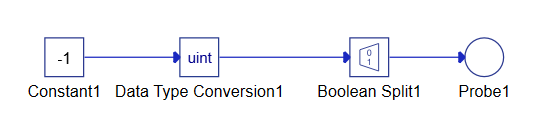

Using data type conversion should work in this case. Like so:

In this example the output is 0xFFFFFFFF which is exactly -1 in the two's complement system.

Comments

Thank You @ Luka Jovančić. My problem is resolved.
