Allows configuration of notifications to Microsoft Teams channel.
Within the configuration form shown in the figure below, user can select which events
should trigger notifications. Additionally, user must provide:
Configuration name
Workflow webhook url - obtained during the setup of the Microsoft Teams
channel, as explained later in the text.
Configuration can be removed at any time by clicking on the
button,
while another Microsoft
Teams configuration can be added by clicking on the
button.

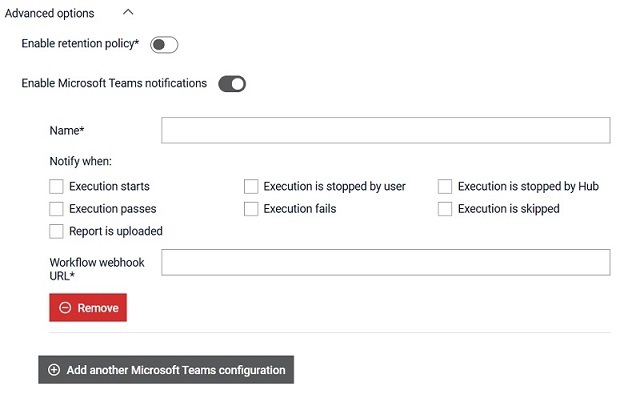

Figure 1. Notifications configuration section
The user needs to choose or create a new channel for
receiving notifications. Once a channel is selected, the user can click on the
three-dot button in the channel header and choose the Workflows option from

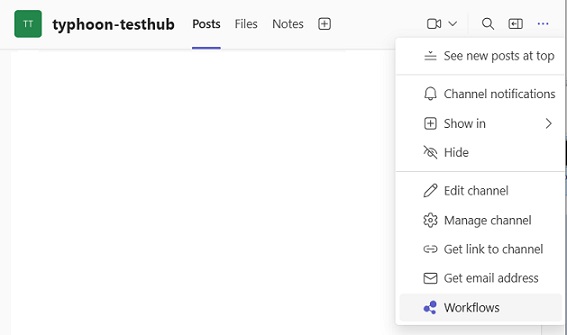

the dropdown menu as shown in the figure below. Figure 2. Microsoft Teams channel's header Once the Workflows option is selected, the dialog shown in the figure
below will be presented. The user needs to choose the option Post to a channel
when a webhook request is received or Send webhook alerts to a channel.

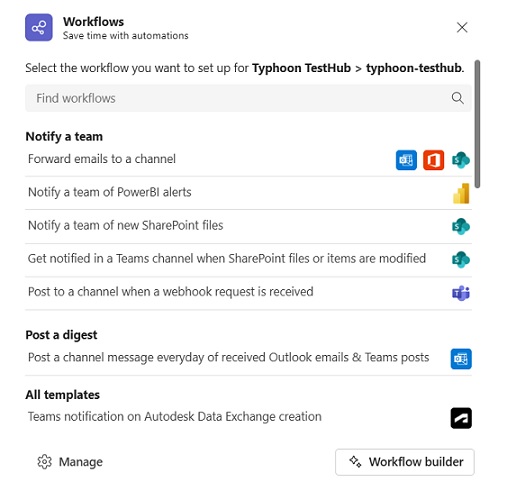

Figure 3. Microsoft Teams workflows dialog After the option is chosen, the configuration involves a few simple steps
where Microsoft Teams handles everything. The user only needs to check the Team and
channel name and confirm for which the workflow will be created. In the final step,
the user will be presented with the previously mentioned Workflow webhook url, as
shown in the figure below. This url needs to be entered in the notification
configuration form within the Typhoon Test Hub. Make sure to copy and enter the url

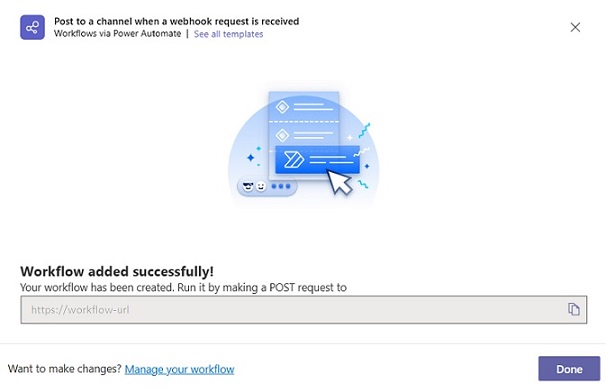

accurately, as it will not be available again once the dialog is closed. Figure 4. Microsoft Teams workflow url shown in the dialog
Note: In order to save a form, all input fields must be valid. Required fields are signed
with *.
