Once that piece of equipment is validated in your HIL, your confidence is high, but there’s an upfront process to get through. The hope is once you have that repository of different building blocks, future deployments of future systems should benefit.
Stuart Laval
Technology Director
Duke Energy
For the time being, microgrids are custom-made, as they must integrate into existing power systems and coordinate with protection devices. DER, inverter-based systems present different challenges to synchronous generators, such as the design of effective grounding, protection, and control.
For a microgrid with a mix of DERs, the battery becomes critical for managing islanding, synchronizing with other DERs and the grid system. As the battery becomes the focal point, its business case has to be justified, with additional value coming from the provision of grid services. As such, there is a requirement for the ability to island and reconnect seamlessly. This leads to the need to understand fault responses of inverters in power electronics-based resources in grid-connected and islanded modes, which is where HIL testing comes into its own.

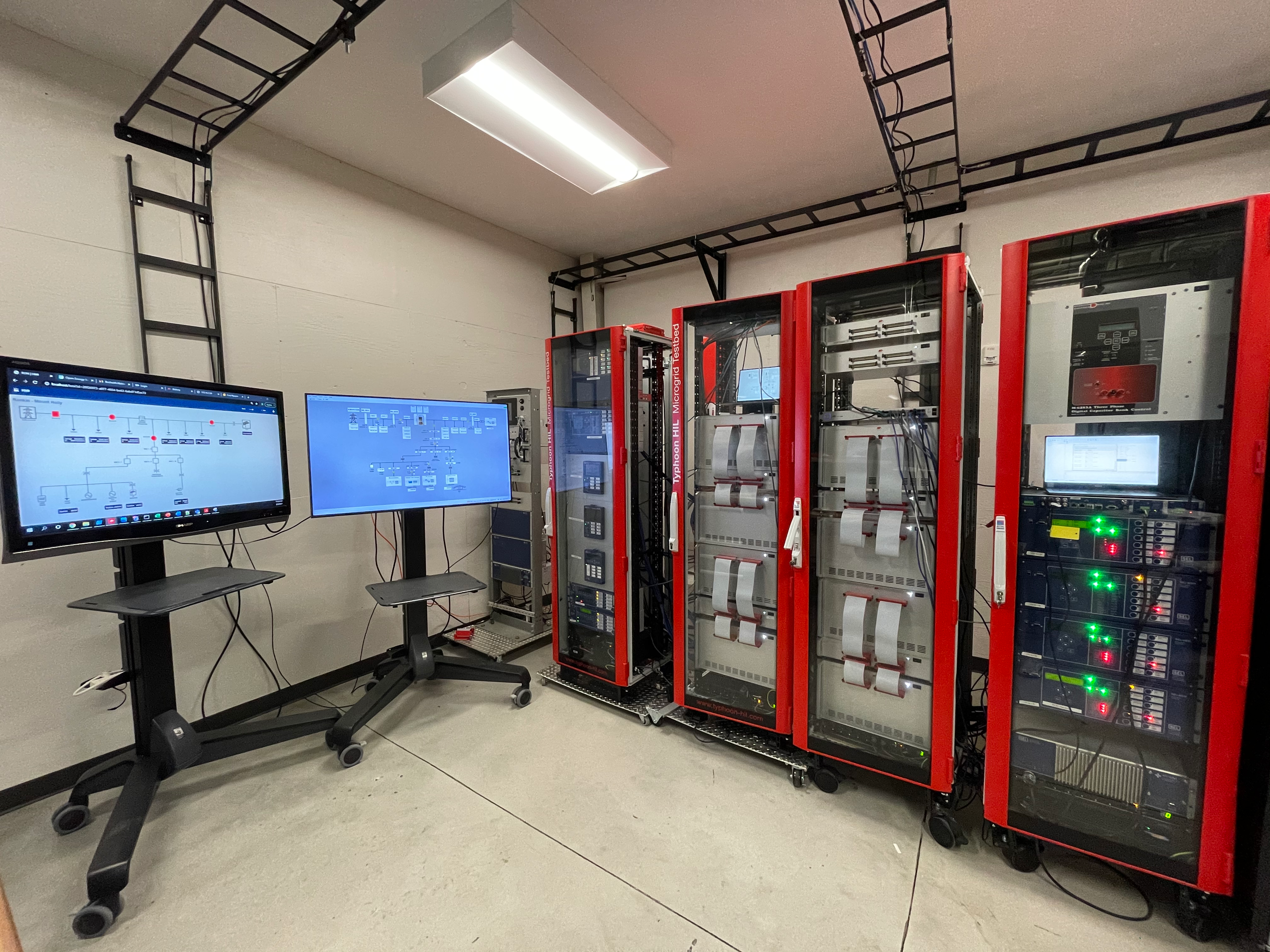

HIL testing allows Duke Energy to build full, closed-loop systems and model the fidelity of PID controllers of inverters to understand the fault response with transience on the grid and existing control schemes. Duke Energy found that HIL gives a better picture of system dynamics, without impacting customers because it is done off the grid in a lab environment.
Utilities have built microgrids without HIL, made technology decisions blindly without understanding full system dynamics. HIL would have provided value and helped with understanding the use cases and impact from a protection control perspective.
Stuart Laval
Technology Director
Duke Energy
Looking ahead, Duke Energy is developing “cookie-cutter” scalable, repeatable microgrid components, and says that HIL is a “no-brainer” for this. HIL becomes an under-the-hood, digital twin for these plug-and-play microgrids. New algorithms can be trialed and new control schemes can be validated before roll out for the customers. Site testing and debugging of software can also be completed ahead of deployment.
There is, of course, upfront investment and process for the use of HIL. For Duke Energy, which develops many microgrid systems, this is worthwhile. HIL provides a vital understanding of how the equipment will integrate with existing power systems.
